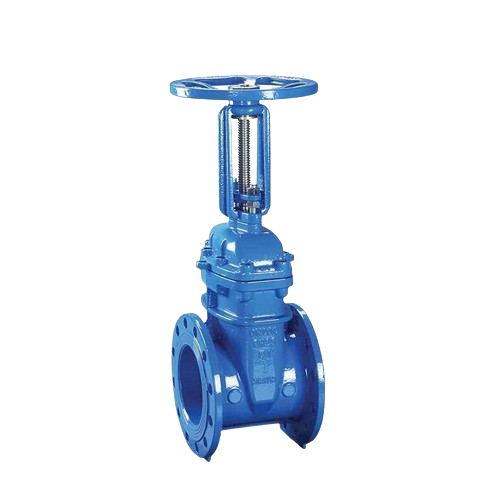

DIN soft gate valve

The DIN Rising Stem Gate Valve is a type of gate valve designed according to DIN (Deutsches Institut für Normung) standards. Here's a simple description of its key features:

1. Design and Construction:

   - The valve body and components are constructed following DIN standards, ensuring dimensional accuracy and compatibility with DIN-compliant piping systems.

   - It typically consists of a sturdy body, gate, stem, and other internal components made of materials suitable for the intended application.

2. Rising Stem:

   - Similar to the ANSI rising stem gate valve, the DIN rising stem gate valve features a stem that moves linearly up and down as the valve is opened or closed.

   - This rising stem design provides a visual indication of the valve position, allowing operators to monitor its status easily.

3. Gate and Sealing Mechanism:

   - The gate moves perpendicular to the flow direction within the valve body.

   - When fully open, the gate is lifted out of the flow path to allow unobstructed fluid flow.

   - Gate sealing surfaces are designed to ensure tight shut-off and prevent leakage, typically using metal-to-metal or metal-to-soft seating configurations.

4. Operation:

   - The rising stem design facilitates manual operation, where the stem is rotated using a handwheel or operated with a gearbox.

   - Automated operation with actuators for remote control is also possible, depending on the application requirements.

5. Applications:

   - DIN Rising Stem Gate Valves are commonly used in industries such as petrochemical, chemical, water treatment, and general industrial applications.

   - They are suitable for on/off and throttling applications, providing reliable flow control for liquids, gases, and steam.

6. Pressure and Temperature Ratings:

   - DIN standards specify pressure and temperature ratings for rising stem gate valves, ensuring they can withstand the operating conditions of various applications.

   - These valves are available in different sizes and pressure classes to meet diverse system requirements.

7. Compliance and Standards:

   - DIN Rising Stem Gate Valves comply with DIN standards, ensuring quality, reliability, and compatibility with DIN-compliant piping systems.

In summary, the DIN Rising Stem Gate Valve is a reliable and versatile valve designed according to DIN standards, offering visual indication of valve position and effective flow control for a wide range of industrial applications.
