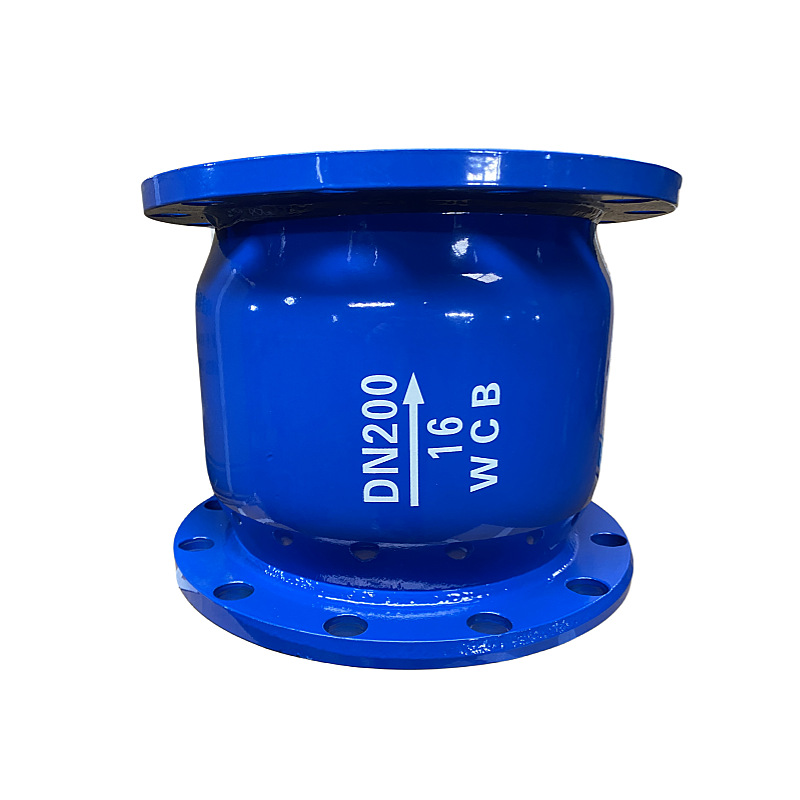

Cast iron copper body silent check valve
Product Description
A cast iron copper body silent check valve is a specialized type of check valve designed to control the flow of fluids in pipelines with minimal noise and vibration. Here’s a detailed description of its construction, operation, and applications:
1. Construction and Materials:
- Body: The valve body is typically made of cast iron, known for its strength and durability. Cast iron provides robustness to withstand high-pressure and industrial environments.
- Internal Components: The internal components, such as the valve seat or disc, are made of copper or copper alloy. Copper is chosen for its corrosion resistance, thermal conductivity, and ability to maintain sealing integrity.
- Design: The valve is designed to allow fluid flow in one direction while preventing backflow. It incorporates a silent check mechanism that operates smoothly and quietly to minimize noise and water hammer effects.
2. Operation:
- Silent Check Mechanism: When fluid flows in the desired direction, the valve opens to allow passage with minimal resistance, promoting efficient flow.
- Prevention of Backflow: In the event of reverse flow or pressure fluctuations, the valve closes automatically to prevent backflow and maintain system integrity.
- Quiet Operation: The use of copper components and the design of the valve ensure silent operation, reducing noise levels compared to traditional check valves.
3. Applications:
- Residential Plumbing: Used in residential plumbing systems to prevent backflow of water from municipal supplies or within home plumbing networks.
- Commercial and Industrial: Installed in commercial buildings, hospitals, hotels, and industrial facilities to control water flow in HVAC systems, fire protection systems, and process pipelines.
- Water Distribution: Used in water treatment plants and distribution networks to maintain pressure and prevent water hammer effects.
- HVAC Systems: Employed in heating, ventilation, and air conditioning systems to regulate the flow of chilled water or condensate.
4. Advantages:
- Noise Reduction: Provides silent operation due to the design and materials used, making it suitable for applications where noise levels need to be minimized.
- Durability: Combines the strength of cast iron with the corrosion resistance of copper, ensuring long-term reliability and minimal maintenance.
- Efficient Flow Control: Ensures smooth and efficient fluid flow while preventing the detrimental effects of backflow and water hammer.
- Versatility: Available in various sizes and configurations to accommodate different pipe diameters and flow rates, ensuring compatibility with diverse plumbing and industrial systems.
5. Installation and Maintenance:
- Installation: Typically installed with flanged or threaded connections for ease of integration into existing piping systems.
- Maintenance: Requires periodic inspection to ensure proper operation and sealing integrity. Lubrication and replacement of internal components may be necessary over time to maintain optimal performance.
In summary, a cast iron copper body silent check valve is designed for effective flow control while minimizing noise and maintaining system efficiency. Its robust construction, quiet operation, and versatility make it suitable for a wide range of residential, commercial, and industrial applications where reliable performance and noise reduction are essential.
