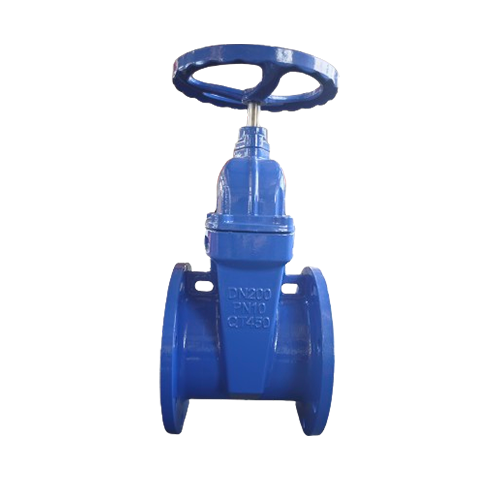

GB5163 soft seal gate valve

The GB5163 soft seal gate valve is a high-performance valve widely used in various piping systems, particularly in water supply and drainage applications. This valve is designed according to the GB/T 5163 standard, which specifies the requirements for soft-sealing gate valves in China.

 Key Features:

1. Soft Sealing Mechanism: The primary feature of the GB5163 gate valve is its soft sealing mechanism. Unlike hard-sealed valves, this valve uses a flexible sealing material, typically rubber or elastomer, on the gate (the part that moves to open or close the valve). This soft seal ensures a tight closure, effectively preventing leakage.

2. Reliable Shutoff: The soft seal design allows the valve to provide a reliable shutoff, even with minor imperfections in the seat or gate. This makes it ideal for applications where a leak-proof seal is crucial, such as in potable water systems, sewage systems, and other pipelines carrying non-corrosive fluids.

3. Low Operating Torque: The soft seal gate valve requires relatively low torque to operate. This makes it easier to open and close the valve, reducing wear on the actuator and extending the valve's service life.

4. Corrosion Resistance: The body of the valve is usually made from materials like ductile iron, which is coated or lined with protective materials to resist corrosion. The internal parts, including the gate and seat, are often treated or coated to withstand the effects of the fluid being handled.

5. Versatile Applications: GB5163 soft seal gate valves are commonly used in water distribution networks, sewage treatment plants, and other infrastructure systems. They are suitable for both above-ground and buried installations.

6. Ease of Maintenance: The design of the valve allows for straightforward maintenance. The soft sealing elements are often replaceable without the need to remove the valve from the pipeline, reducing downtime and maintenance costs.

 Technical Specifications:

- Size Range: Typically available in sizes from DN50 to DN1200, catering to a wide range of pipeline diameters.

- Pressure Ratings: Common pressure ratings for this valve range from PN10 to PN25, making it suitable for various pressure conditions.

- Temperature Range: The soft sealing materials are generally suited for temperatures up to around 80°C, depending on the specific material used.

 Applications:

- Potable Water Systems: Ensures a clean, tight seal to prevent contamination.

- Sewage Systems: Effective in systems where the fluid contains solids, as the soft seal can accommodate minor debris without compromising the seal.

- Firefighting Systems: Used in fire protection pipelines where reliable shutoff is critical.

- Irrigation Systems: Widely used in agricultural applications for controlling water flow.

The GB5163 soft seal gate valve is valued for its durability, ease of operation, and strong sealing capabilities, making it a preferred choice in many industrial and municipal water and wastewater systems.
