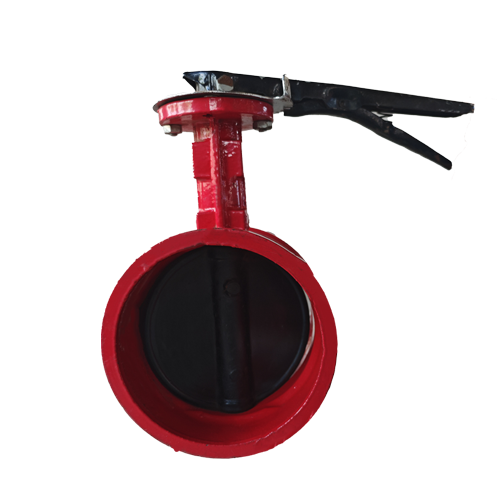

Handle fire groove butterfly valve

A Handle Fire Groove Butterfly Valve is a specialized valve primarily used in fire protection and suppression systems. This type of valve is integral to ensuring the effective management of water flow within these systems, allowing for rapid control in emergency situations. Here’s a detailed breakdown of its features, construction, and applications:

 1. Design and Construction

- Grooved End Connections: The valve features grooved ends, which allow for easy and quick installation in piping systems using grooved couplings. This design simplifies the assembly process, reduces installation time, and provides a flexible connection that can absorb vibrations and thermal expansions.

- Butterfly Valve Mechanism: It operates using a disc, or "butterfly," that rotates around a central axis within the valve body. When the handle is turned, the disc rotates, either allowing fluid to pass through or blocking it entirely. The simplicity of this mechanism makes the butterfly valve compact, lightweight, and efficient.

- Handle Operation: The valve is manually operated by a handle. The handle typically has a locking mechanism to ensure the valve remains in the desired position, whether fully open, closed, or at a specific point in between. This is critical in fire protection systems, where the valve must maintain its position until manual adjustment is required.

- Materials: These valves are often constructed from durable materials such as ductile iron, stainless steel, or bronze, which provide resistance to corrosion and ensure a long service life, especially in environments where reliability is crucial.

 2. Functionality

- Flow Control: The primary function of the Handle Fire Groove Butterfly Valve is to control the flow of water or other firefighting agents within the system. When fully open, it allows for maximum flow with minimal pressure drop. When closed, it completely stops the flow, effectively isolating sections of the system for maintenance or emergency response.

- Quarter-Turn Operation: The handle requires only a 90-degree turn to move the valve from the fully open to the fully closed position. This quick operation is vital in emergency situations, where every second counts.

 3. Applications

- Fire Protection Systems: The Handle Fire Groove Butterfly Valve is most commonly used in fire protection and sprinkler systems in commercial, industrial, and residential buildings. It is installed in various locations throughout the system to control the flow of water to different areas.

- Emergency Isolation: In the event of a fire, the valve can be quickly operated to isolate sections of the fire protection system, directing water to where it is most needed or shutting off flow to damaged or compromised sections.

- Maintenance and Testing: These valves are also used during regular maintenance and testing of fire protection systems. They allow for easy isolation of sections of the system without disrupting the entire network.

 4. Compliance and Standards

- Industry Standards: Handle Fire Groove Butterfly Valves are typically designed and manufactured to comply with industry standards such as those set by the National Fire Protection Association (NFPA) and Underwriters Laboratories (UL). Compliance with these standards ensures that the valves meet the necessary performance and safety criteria.

- Certifications: Many of these valves are UL-listed and FM-approved, which signifies that they have been rigorously tested for reliability and performance in fire protection applications.

 5. Advantages

- Ease of Installation: The grooved connection design allows for quick and easy installation, reducing labor costs and downtime.

- Low Maintenance: The simple design of the butterfly valve requires minimal maintenance, which is a significant advantage in fire protection systems where reliability is paramount.

- Cost-Effective: Compared to other valve types, the butterfly valve is more cost-effective while still providing efficient and reliable performance.

- Compact Size: The compact design of the valve allows it to fit into tight spaces, making it ideal for applications where space is limited.

 6. Considerations

- Pressure Rating: Ensure the valve is suitable for the system’s operating pressure. Grooved butterfly valves are typically rated for lower pressures compared to other valve types, so this must be considered during selection.

- Temperature Range: The materials used in the valve construction should be compatible with the temperature range of the fire protection system, especially if it involves extreme temperatures.

In summary, a Handle Fire Groove Butterfly Valve is a crucial component in fire protection systems, offering a reliable and efficient way to control water flow. Its ease of installation, compact design, and quick operation make it an ideal choice for various fire protection applications.
