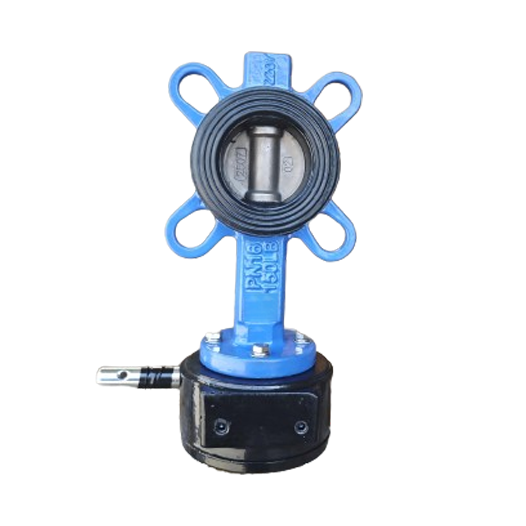

150LB Wafer Butterfly Valve

The 150LB Wafer Butterfly Valve is a type of butterfly valve designed to operate within a pressure rating of 150 pounds per square inch (PSI). Here’s a detailed description:

 1. Construction and Materials:

- Body Material: The valve body is typically made from materials such as cast iron, ductile iron, stainless steel, or carbon steel. The choice of material depends on the application, including factors like fluid compatibility and environmental conditions.

- Disc Material: The disc, which controls the flow of the fluid, is often made from stainless steel, ductile iron, or other durable materials. The disc material is selected for its strength, corrosion resistance, and suitability for the specific fluid being handled.

- Seat Material: The seat is usually constructed from elastomeric materials such as EPDM (ethylene propylene diene monomer), NBR (nitrile butadiene rubber), or PTFE (polytetrafluoroethylene). These materials provide a tight seal and are chosen based on the chemical compatibility and temperature requirements of the application.

 2. Design and Operation:

- Wafer Style: The wafer-style body design allows the valve to be mounted between two pipe flanges. This design eliminates the need for additional support and reduces the overall size and weight of the valve, making it suitable for applications where space is limited.

- Butterfly Design: The valve features a disc that rotates on an axis perpendicular to the flow. The quarter-turn operation of the disc allows for efficient control of the fluid flow. When the disc is turned, it either blocks or permits the flow, depending on its position.

- Pressure Rating: The "150LB" designation refers to the valve’s pressure rating, which is 150 PSI. This rating indicates the maximum pressure the valve can handle safely. The valve is designed for applications where moderate pressure is involved.

 3. Applications:

- Water Treatment: The 150LB Wafer Butterfly Valve is commonly used in water treatment plants for controlling the flow of water. Its corrosion-resistant materials and compact design make it suitable for this application.

- HVAC Systems: In heating, ventilation, and air conditioning (HVAC) systems, the valve regulates the flow of water, steam, or air. Its lightweight and space-saving design are beneficial in these systems.

- Industrial Processes: The valve is used in various industrial processes, including chemical processing, food and beverage production, and manufacturing. Its ability to handle moderate pressures and corrosive fluids makes it versatile for different industrial needs.

- Pipelines: It is used in pipelines for regulating flow in both horizontal and vertical installations. The wafer design allows for easy integration into existing piping systems.

 4. Advantages:

- Compact and Lightweight: The wafer-style body reduces the valve’s overall size and weight, making it easier to handle and install in tight spaces.

- Cost-Effective: The design and materials used in the 150LB Wafer Butterfly Valve make it a cost-effective option for many applications, offering reliable performance at an affordable price.

- Ease of Operation: The quarter-turn operation of the disc allows for quick and simple control of the fluid flow, improving operational efficiency.

- Corrosion Resistance: The materials used in the valve are selected for their resistance to corrosion, extending the valve’s lifespan and ensuring reliable performance.

 5. Installation and Maintenance:

- Installation: The valve is installed between two flanges in a piping system. Proper alignment is crucial to ensure a tight seal and prevent leakage. The valve can be installed in both horizontal and vertical pipelines, depending on the application requirements.

- Maintenance: Routine maintenance includes inspecting the disc, seat, and any seals for wear or damage. The valve’s simple design generally requires minimal maintenance, which helps in reducing downtime and operational costs.

 6. Limitations:

- Pressure and Temperature Limits: The 150LB Wafer Butterfly Valve is designed for moderate pressure applications. It may not be suitable for extremely high-pressure or high-temperature environments, where alternative valve types or materials may be required.

- Manual Operation: The standard design involves manual operation. For applications requiring automated control, the valve can be fitted with an actuator.

In summary, the 150LB Wafer Butterfly Valve is a versatile, cost-effective, and space-saving solution for controlling fluid flow in various applications. Its wafer-style design, combined with its moderate pressure rating, makes it suitable for use in water treatment, HVAC systems, and industrial processes.
